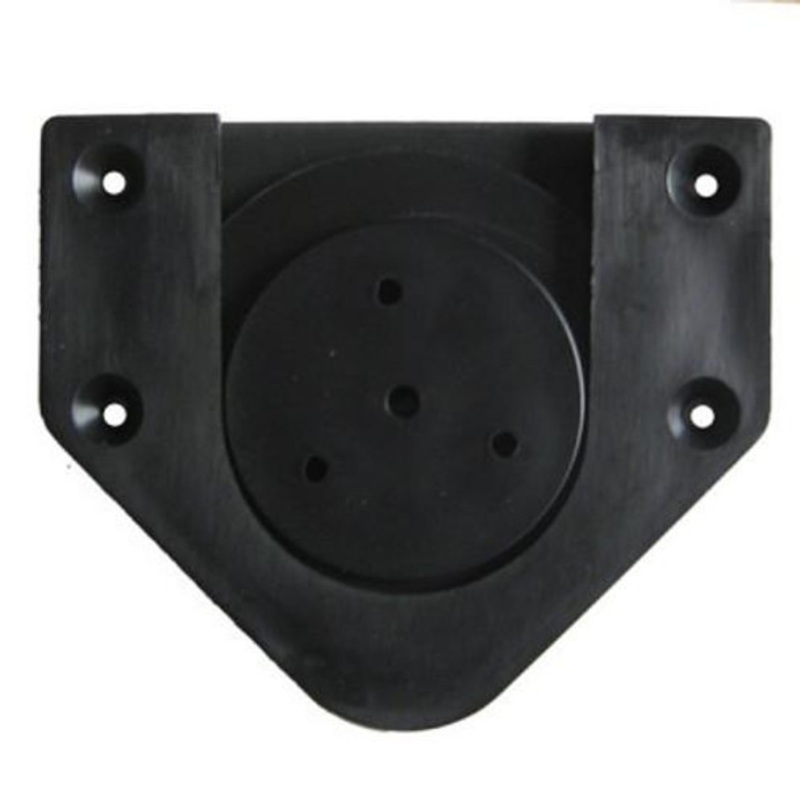

Bracket System

Size (Wall mounting part): Height 8.2cm (3.2in), Width 9.8cm (3.9in), Thickness: 0.9cm(0.4in)Included Parts: Round Disc x 1, Wall mounting part x 1, Short Screws x 4, Long Screws x 4Accessory for installing a Steel tip Board.This bracket not only allows your board to be very stable but also allows the board to rotate even after installation.Compatible with the “EMBLEM series” from Dynasty.*Note: A stabilizing piece of rubber is installed on the back of the steel tip boards from the “EMBLEM series”. Usage of this bracket does not require removal of the rubber.

Installation process:1.Attach the round disc on in the center of the back of the steel tip board using the 4 short screws.2.Attach the parts that need to be mounted on the wall using the 4 long screws at a height of 173cm (5 feet 8 inches) from the floor to the center of the bullseye.3.The round disc slides from the top into the mounted wall bracket.*If the screw heads are coming out of the parts, the boards will not rotate. Please make sure that each screw is set all the way.
